RFC-0271: Anchored Packages

Problem Statement

Currently, the system update ("OTA") implementation in Fuchsia requires storing two complete set of blobs at the same time. This is straightforward but poses a problem for devices which suffer from a lack of disk space.

Summary

This RFC proposes an implementation for anchored packages, initially described in RFC-212. These package sets satisfy the following invariants:

• Only the permanent, anchored packages (bootfs, base as per RFC-212) are downloaded during the system update (OTA) itself.
• The packages and their blobs are uniquely identified by their Merkle hashes. For automatic anchored and on demand anchored packages, the meta.far archive hashes, carrying this information, are included in the update package.
• The automatic anchored and on demand anchored packages are downloaded at some point after the system update has been applied, and the device has booted into the new system version.
• The previous point is especially disjunct from eager updates as per RFC-145, which map to the set of automatic, upgradeable and permanent, upgradeable packages as per RFC-212: The anchored packages do not delegate the authentication of what constitutes the "correct" package to another party: Eager updates allow for packages to be updated independently of the system OTA, while anchored packages do not.

The invariants yield the following implications for the sets of anchored packages:

• They cannot be updated to newer versions without performing a system update, since the cryptographic hashes of all packages are still distributed with the system update.
• From the viewpoint of an application, it shall not matter if the packages are distributed with the OTA or as an anchored package. The application may, however, experience some delay when accessing functionality that is provided by packages not yet resolved. The details on this are given in the section on Performance.
• Automatic anchored packages are not downloaded on demand, unlike the packages from TUF repos in engineering builds and the on-demand anchored packages. Instead they are downloaded once booting into the updated system has started.

Automatic anchored and on-demand anchored packages can be leveraged to avoid the need to keep every package in the system stored twice during an OTA on the device's non-volatile storage, hence improving storage efficiency, especially on storage-constrained devices.

Motivation

The commonly employed system update mechanism on production Fuchsia systems currently performs complete updates over a three partition "ABR" scheme. Partitions A and B each contain a full system image. The R partition contains a minimal recovery partition which is not in scope for this RFC.

One of the partitions A or B is the active partition at any point in time, i.e. the boot loader will boot the system into the active partition when the device is turned on. Currently, for the user buildtype, all software known to the package management is always available on-device.

When an OTA is performed, the system updater will write a complete new system image onto the non-active partition A or B. Also, it ensures that all known blobs are downloaded to the fxblob/blobfs storage which is shared by both A and B slots. Upon successful completion, it will flip the bit that indicates which is the active partition, and reboots into the new system image. This means that at any given time, one full system image is occupying space but is not used at all, and there is a time window during which fxblob/blobfs must hold the blobs for both the currently running version of the device software, and the new version. This allows for a more efficient usage of a device's resources. RFC-212 has defined and generally laid out the nomenclature and concepts for extensions of the Fuchsia package management system to reduce the footprint of the system images. It does so by allowing packages to be excluded from the system image and to be downloaded to the fxblob/blobfs storage after the system update. This removes the need for a time window where the old and new version of a package both occupy space on fxblob/blobfs.

An additional motivation to support anchored packages is the desire to minimize the amount of unnecessary network traffic. If a majority of the users of a Fuchsia-based system do not use certain software components at all, excluding them from the OTA and only downloading them on demand might reduce significant amounts of data to be transferred, reducing the required capacities on servers and networking.

Definitions

The following terms and definitions apply as defined in RFC-212: Base, Bootfs packages, Cache, Eager update, Garbage collection, Package, Package set, Package version, Parent package, Permanent package, Product, Product build, Product release, Subpackages, System update, Universe, Versioning authority.

Stakeholders

Facilitator:

jamesr@google.com

Reviewers:

• etryzelaar@google.com (SWD)
• amituttam@google.com (PM)
• awolter@google.com (Software Assembly)
• markdittmer@google.com (Security)
• gtsai@google.com (Infrastructure)

Socialization:

This RFC was discussed in a series of design discussions internal to the software delivery team. Early versions of the text in this RFC were reviewed with stakeholders in the Software Delivery, Build and Assembly teams, and potential customers.

Requirements

• The delivery mechanics for anchored packages shall not require additional services or infrastructure, i.e. the same mechanism of getting the system update (OTA) onto the target device shall be applicable to the anchored package as well.
• The specification which packages belong to which anchored package set is done manually. No mechanism that attempts to automatically determine which package could be part of which package set is going to be implemented based on this RFC.
• The implementation is scoped to the limits as defined per RFC-212 and displayed in the illustration below. Specifically the following scenarios will not be covered or supported by automatic or on-demand anchored packages:
  • Support for delegation of version control.
  • Support for packages that are essential for the out-of-box-experience (OOBE) workflow of the product.
  • This means that if packages essential for OOBE are marked as automatic or on-demand anchored packages, the package management stack has no way to guarantee that all packages needed for a successful OOBE workflow are available when needed. This is due to the fact that in many cases, the OOBE workflow includes setting up networking. Hence, the automatic and on-demand anchored packages are not guaranteed to be resolvable before the OOBE completes.

Design

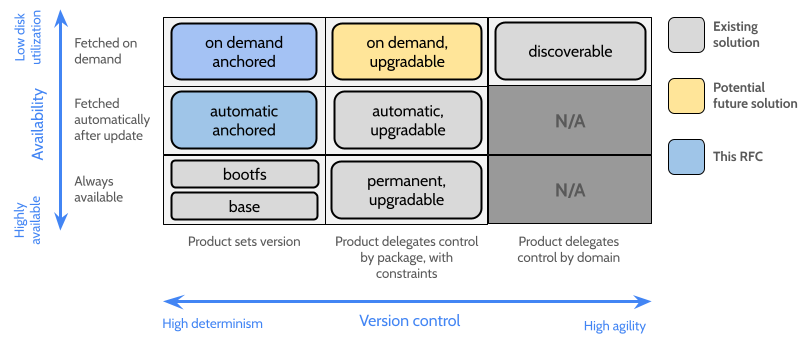

The anchored package sets

A package set is a collection of packages, all of which are delivered and updated using the same strategy. The most frequently used package set in production devices are the permanent (base and bootfs) sets which share the main characteristics of being always available and set by the product definition:

• The Merkle hashes describing the packages, ensuring their integrity,
• and the packages themselves

are downloaded as part of the OTA update process, before the reboot into the updated product version. Because of this, combined with Fuchsia's default ABR partitioning scheme in which both the A and B partitions contain a fully bootable system, packages of the base set are stored potentially twice in fxblob/blobfs: If they are different, one version from the product in the A partition is in the store, and one from the product in the B partition. From a running system, the list of packages in the base set are reflected by the data/static_packages file of the base package. In the process of package resolution, these packages are resolved by the base resolver, a part of pkg-cache. In other words, they are resolved locally and do not require network connectivity.

The automatic and on-demand anchored package sets share some characteristics with the bootfs and base sets, but are distinct in fundamental ways:

• Like with base packages, the Merkle hashes describing the anchored packages are downloaded to the intended system partition before the reboot into the new system version.
• Unlike with base and bootfs packages, the blobs themselves are not downloaded to fxblob/blobfs before the reboot into the new system.

This allows the optimization of the download stages of an OTA update for storage size, since it can be avoided to keep multiple versions of a package in the non volatile storage. This is described in "Boot sequence with automatic anchored packages" below.

The distinction between the automatic and on-demand anchored packages lies within the trigger that causes the package resolver to fetch the package:

• An on-demand anchored package is fetched as soon as any eligible component with the permission to query the resolver on the running Fuchsia system requests resolution of the package.
• An automatic anchored package is resolved as early as possible after rebooting into a new Fuchsia system after the OTA has been performed.

Garbage collection of anchored packages

This RFC proposes that, until a potential revision of the garbage collection algorithm in the future, the following rules apply for the collection of anchored packages:

• The automatic anchored packages, once downloaded to fxblob/blobfs, will be protected from garbage collection until the next reboot into a newer system.
• Only when the system version and thus the Merkle hashes have changed, and they are no longer part of the then-running system version, will the automatic anchored packages be subject to garbage collection.
• The on-demand anchored packages will receive no additional protection from garbage collection, and will follow the rules specified in RFC-217 on open package tracking.

Resolution of on-demand anchored packages

The package resolver already has the functionality to download packages and make them available on the running system on-demand. Hence, leveraging this feature for on-demand anchored packages is straightforward: As soon as the resolution of a package that is not available on the system, the package resolver will download the blobs, they will be verified and made available via fxblob/blobfs.

The main difference between the always available package sets and automatic / on-demand anchored packages is that for the latter two, the resolver requires an internet connection.

On-demand anchored packages do not have to be explicitly marked as such from the viewpoint of the running system. When a package is requested, the resolver will simply notice that its blobs are not available in the package cache and initiate the download process.

However, the decision of whether a package is included in the product as an on-demand anchored package falls to the developer, and marking it as such in the product definition is required:

• The Fuchsia product definition will accept a list of on_demand_anchored packages.
• The ffx assembly product tool will be able to emit the list to the image assembly configuration.

During product assembly:

• The package (blobs and manifests) are included in the main product bundle.
• The blobs are not included in the fxblob/blobfs used for flashing a device.
• The list of packages in the on-demand anchored set is constructed in a way analogous to the base packages. The list will be part of the AssemblyManifest and included in the update package. A running Fuchsia system will find the list of packages of this set in the data/anchored_packages file of the base package.

Resolution of automatic anchored packages

Like with on-demand anchored packages, the decision of whether a package is included in the product as an automatic anchored package falls to the developer, and marking it as such in the product definition is required:

• The Fuchsia product definition will accept a list of automatic_anchored packages.
• The ffx assembly product tool will be able to emit the list to the image assembly configuration.

During product assembly:

• The package (blobs and manifests) are included in the main product bundle.
• The blobs are not included in the fxblob/blobfs used for flashing the device.
• The list of packages in the automatic anchored set is constructed in a way analogous to the base packages. The list will be part of the AssemblyManifest and included in the update package. A running Fuchsia system will find the list of packages of this set in the data/anchored_packages file of the system update package.

The packages in this set are resolved after rebooting into a new or upgraded Fuchsia system. As mentioned before, this is notably different from the packages in data/static_packages, all of which are always present and are known to pkg-cache.

Boot sequence with automatic anchored packages

The boot sequence of a system which has the set of automatic updated packages is as follows:

• Following an initial boot of a new or a reboot after an OTA, when network connectivity is confirmed:
  • An fxblob/blobfs garbage collection will be performed to evict the dangling blobs present from the previous system version.
  • In the event of a lack of network connectivity, the garbage collection is delayed until the network becomes available.
• The boot sequence completes as usual, having all packages of the base set already available.
• While the boot sequence completes, the package resolver will check for the presence of each of the blobs of the automatic anchored set, and start downloading all its blobs not present in fxblob/blobfs.
• In case download errors occur, the resolver will continue to check for missing blobs from the automatic anchored set and retry downloading the missing ones as the system accrues uptime.

Possibility of unavailable packages

Unlike on a system where only permanent packages are available, as soon as on-demand or automatic anchored packages come into play, there is no more guarantee that all packages will be available at all times.

The boot process will by default not block on download failures or slow downloads, unless a product explicitly requires this behavior and implements it correctly. There are two main reasons:

• A device may not even be configured for network connectivity yet, and has to go through the out-of-box-experience (OOBE) workflow, before on-demand or automatic anchored packages can be downloaded in the first place.
• Potentially unfavorable user experience. For instance, a device could suffer from internet connectivity loss during the download of the set of automatic anchored packages, while the user wants to use a simple function of the device which is readily available through the base package set.

Note that the possibility of at least intermittently unavailable packages mandates that the components depending on them must be able to handle this case gracefully. Specifically, calls to components which might need to be fetched via network are not guaranteed to complete in a specific amount of time as network latencies and speed are unknown for most use cases. More details are discussed in the section "Reporting of the availability of packages".

Reporting of the availability of packages

Compared to the situation where all known packages are always available on the device, the post-OTA download and the benefits of OTA storage savings come at the price of predictability. This might give rise to related requirements, for instance:

• Components might want to know if a dependency is readily available or whether it is still downloading before calling a particular function.
• Especially user-interactive application might want to implement a mechanism to watch for unexpectedly long wait times when calling into a provider of some functionality, and display a message to the users to manage their expectations.
• Tracing or debugging tools might want to inspect detailed data or metrics on package availability, such as whether a package is present, being downloaded, at what download speed, latency, retries, and so on.

The specific detailed requirements and the implications for the resulting changes to the Fuchsia platform are not comprehensively known at the time of writing this RFC. Thus, a detailed design for this type of monitoring and availability reporting is out of scope. This might be addressed in a future RFC or implementation.

Following current planning, tooling, for instance debug_agent or zxdb are likely the first components to make use of some form of availabily reporting and monitoring. This will allow for a better understanding of the requirements, the gaps and the necessary changes to be addressed in the future. Complex use cases like the interaction with interactive UI, progress reporting to end users and similar cases are not within scope of this initial set of use cases.

Implementation

The implementation will be split in multiple phases to allow for synchronization between participating teams and validation of the functionality before enabling the functionality for Fuchsia-based products.

The first phase will encompass the implementation of the pure functionality in the package resolver and package cache, which requires:

• SWD
  • Support for obtaining the list of automatic anchored packages from the base package's data/anchored_packages upon startup, and making the blobs for the automatic anchored packages available.
• Build, Assembly
  • Support for processing a list of desired automatic and on-demand anchored packages during product build, and providing data/anchored_packages to the images.
  • Update the size check tooling to support anchored packages and reflect the build and image sizes correctly.
• Security
  • Technical review of the internet facing code path of the resolution of the automatic and on-demand anchored packages.

The second phase will encompass the preparation of enabling the new functionality for Fuchsia-based products. This requires:

• SWD
  • Preparation of a variant of an existing product configuration that moves some packages from the base set to the automatic or on-demand anchored set.
• Server side packaging infrastructure
  • Storage for packages and integration with the blob store.

The third phase, would see the adoption of automatic or on-demand anchored packages into a Fuchsia-based product with a first application. This decision is out of scope for the RFC. However, conceptually, this would require:

• Selected application / maintaining team and test team
  • Review and adapt the application to be able to handle if dependencies are temporarily unavailable.
  • Create and adapt tests and test plans to simulate and run through the possible set of error states that can arise (slow download, DNS issues, interrupted connectivity, out-of-box experience, ...).
• Release management
  • Ensure there are end-to-end product tests in place which guarantee the OTA and OOBE workflows do not depend on on-demand packages.
  • Shepherding the release that incorporates anchored packages through all stages and final rollout to the users of the Fuchsia-based product.

The data/anchored_packages file

A central element of the implementation is how the system identifies the automatic and on-demand anchored packages. As mentioned before, they will be listed in data/anchored_packages, similar to the data/static_packages file. However, unlike the simple key/value format of the static_packages file, this will convey more information for automatic and on-demand anchored packages, in the beginning:

• Whether they are automatic or on-demand.
• The package, identified by its URL.
• The package hash.

Hence, the data/anchored_packages file will be a json file, containing this information, conceptually:

{
  "on_demand": {
    "fuchsia-pkg://fuchsia.com/package1": {
      "hash": "d5eb4bb8a394176f20a266bac7cd8a077579f57119c5e1ed0981cd5ea563c183"
    },
    "fuchsia-pkg://fuchsia.com/package2": {
      "hash": "d33da6cb5fc8787ae1386e85ff08a32c6e846668d5eb4bb8a394176f20a2681c"
    }
  },
  "automatic": {
    "fuchsia-pkg://fuchsia.com/package3": {
      "hash": "d189658d88636999abe2c4375409ace94fd0408d338e96692b8b8bad07c484d4"
    },
    "fuchsia-pkg://fuchsia.com/package4": {
      "hash": "e6c22775bac3301f18d012493ffc6c7fe442b59cd5eb4bb8a394176f20a266ba"
    }
  }
}

Performance

The performance implications of this RFC can split into the following areas:

1. The performance of a Fuchsia-based product at runtime for packages that are available on fxblob/blobfs. We do not expect noticeable changes in runtime performance in this area, since for resolved packages of the anchored set there is no difference to base packages with regard to how they are provided by the package cache or how they are run.

2. The performance of a Fuchsia-based product at runtime for packages that are known to the package management but not yet downloaded. The overall performance impact of the resolution (download, verification) of packages on the Fuchsia-based product in terms of CPU and memory consumption is expected to be benign. The impact may, however, be noticeable in situations where the user of the product wants to execute functionality that depends on packages still being downloaded. In this case, the user experience is impacted to a certain extent, depending on the download speed. The extent is dominated by the speed and latency of the user's internet connection, hence it is out of scope for this RFC. Note that the on-device application depending on the package still being downloaded could clarify the situation to the user, for instance by conveying a message that a required download is still in progress. From a UX perspective, this is preferable to a device that appears unresponsive or in an unknown state.

3. The overall duration of the OTA process changes for products that make use of automatic anchored packages. We expect that - on average - the time between "download of the system update package has started" and "the new build is running" is reduced, the average time between "download of the system update package has started" and "all packages have been resolved" increases. As mentioned in the previous bullet point about resolving packages which are not available on fxblob/blobfs yet, it is advisable that the software depending on non-permanent packages is ready to manage the user's expectations. For some types of devices this change in duration might be less of an issue, e.g. devices that are routinely updated in the middle of the night when they are unused.

4. The package serving infrastructure will most likely experience different load patterns when serving to products employing automatic or on-demand anchored packages, compared to products that distribute updates as a single OTA. This depends on, for instance, when devices reboot after receiving the update package in case of automatic anchored packages, or when some functionality is first requested by the user in case of on-demand anchored packages. But also, other factors like geographical location and whether certain functionality is employed at all by users will cause the load of the package serving infrastructure to be different compared to serving to products with only static packages. Aspects of this are discussed in the section "Future work".

5. Due to the previous points, it is advisable to have metrics for (i) the duration of the download of the update package and its installation, and (ii) additionally for the duration of the resolution of the automatic anchored packages after the first reboot into the new build. This allows for better understanding how frequently the user experience suffers from flaky internet connection or slow download speeds after the system update has already been applied successfully.

Benchmarks

Products leveraging anchored packages may experience differences in user visible activities. Thus, for such products we recommend collecting additional benchmarks routinely to ensure the user experience does not regress and to counteract if the benchmarks suggest:

• The time to resolution of the set of automatic and on-demand anchored packages for a given product under a defined variety of network conditions (uplink / downlink speed, latency, package drops, etc.).
• The frequency of unsuccessful resolution attempts of anchored packages, again under a defined variety of network conditions.
• The frequency of how many times users Fuchsia-based products request functionality which depends on packages which are not yet resolved.

Those metrics are intended to provide data to make a reasonable decision whether a certain package can be moved out of the base set or whether an anchored package should be moved back into the base set.

Ergonomics

Eng workflows

The engineering workflows would stay largely the same as what can be accomplished with eng builds today, where packages are made available dynamically from a repository server, serving a TUF repository. Generally speaking, a component should not have to deal with the lower level details of how its dependencies are made available, and the package resolution process abstracts these details away.

We expect that we will extend the existing tooling around ffx to support test and development workflows around anchored packages if and when gaps are identified.

Backwards Compatibility

This work will be backwards compatible with existing uses of the Software Delivery stack. The package URL namespace structure or resolution concepts are not going to change.

This work does not deprecate existing functionality. Thus unless anchored packages are used, the changes are entirely transparent.

Security considerations

There are security considerations with this proposal. They overlap slightly with RFC-145 but in a fundamental way this proposal is more benign.

• Like RFC-145, we resolve packages at system runtime, i.e. the package resolver needs permission to connect to the internet, at least until all packages are resolved and the blobs are stored in fxblob/blobfs.
• Unlike RFC-145, this proposal does not delegate authority about the set of runnable packages. All hashes of the entire package universe are known upon boot into the new OTA. Hence, product definition and what constitutes valid packages are identical to a product that only uses base packages.

Privacy considerations

We believe the proposal does not include any new functionality with an impact on privacy. However, the following point should be considered:

We recommend the introduction of new metrics earlier in the section on Benchmarks. Those metrics are intended to cause user experience regressions. The introduction of such benchmarks, if collected from production devices, shall go through privacy reviews.

Testing

The new extensions to the software delivery stack are going to be covered by extensions to the existing test suite and will cover unit tests, integration tests and e2e tests covering all new code paths.

Testing will also cover scenarios where resolution of anchored packages depends on a successful prior garbage collection and facing close-to-full-disk scenarios.

To evaluate the UX of Fuchsia-based products leveraging anchored packages, validation of critical user workflows should be performed, especially under suboptimal network conditions.

Documentation

Upon acceptance of this RFC we will:

• Update the glossary entry for "package".
• Update the section on packages in "concepts".
• Update the page on "packages in the IDK".
• Update the page on product packages in the "get started guide".
• Add information about how updates are configured when using anchored packages.

Drawbacks, alternatives, and unknowns

Alternative: Using other partitioning schemes for Fuchsia-based products

This alternative does not encompass the same semantic scope as the previous focus on the software delivery mechanisms, and is largely orthogonal to this RFC. But it focuses on one of the important reasons for automatic and on-demand anchored packages: To save space on the non volatile storage device of a Fuchsia-based product.

It is frequently assumed that those products are built on an ABR partitioning scheme:

• A and B as partitions into which an entire system image fits
• R as the recovery partition for emergencies, when both A and B are unusable

While it is a proven concept which is used in a plethora of devices of varying types, it is certainly not the only option. There are at least two more possibilities which save close to half the space:

• AR-scheme: There is only one system partition (A). OTAs are performed by booting into the recovery image (R), and then the system partition (A) is overwritten.
• AB-scheme: Instead of having a separate partition for recovery, both A and B contain recovery software that can be used to re-flash the other system partition.

While those alternative partitioning schemes address the goal of providing more free disk space on constrained devices, they are very different from focusing on the packages themselves, to the point where they can be regarded as orthogonal from the viewpoint of space savings. Anchored packages, however, can satisfy other goals as well, such as reducing network traffic, hence changing the partition scheme is an option that should be evaluated independently of this proposal.

Future work

Removal of the data/static_packages file

We might choose to depreciate and remove the data/static_packages file and include the packages listed in that file with the more versatile and extensible data/anchored_packages file.

Notification API

Intentionally out of scope for this RFC, we might choose to implement some form of a notification API in the future, where components could inquire, for instance, about the state of package resolution, download speed or estimated time of download completion.

Inclusion of package content blobs in the system update package

Depending on future requirements, we might choose to include not just the packages' meta.far files in the update package, but also package content blobs. This may, for instance, allow the estimation of download times for automatic and on-demand anchored packages.

Optimization for specific workflows

With package sets, there is potential to allow optimization for specific workflows. However, these optimizations might come at extra costs or may be complicated to implement, especially when considering all edge cases. Thus, these considerations are out of scope for this RFC. But to provide the context, some of the potential optimizations are:

• Aggressively leveraging on-demand packages allows to work with fxblob/blobfs storage that is smaller in size than the combined set packages of a defined product. For such a case, on-demand packages could be frequently subjected to garbage collection and re-download of the packages which need to be in use. While possible, it would require careful design of the possible workflows on such a product to guarantee there is always sufficient storage to hold all packages in use at any given time.
• It would be possible to include the automatic, or even (most of) the on-demand anchored packages in the initial fxblob/blobfs image used for flashing, hence eliminating the need to download those packages after the initial out-of-box-experience. While possible, it introduces subtle differences between the initial image and subsequent OTAs, with likely complications for assembly and testing.

Additional developer tooling

With the inclusion of automatic or on-demand anchored packages, there is potential to support developers with additional tools. The decision of which tools to build is out of scope for this RFC, but some potential tools are:

• Report and pretty-print the package dependency graph, highlighting the direct and transitive dependencies to not-always-available packages.
• Simulation of non-perfect network conditions when serving packages to development targets via ffx repository serve, for instance slow networks, or intermittent connection issues.

Revisiting of the package serving infrastructure

Based on the networking metrics that may be collected from products employing automatic and on-demand anchored packages, teams operating package serving infrastructure may gain insights that help optimizing the serving infrastructure for shorter download times or latency for the users. Expected aspects are, for example:

• Distribution of storage buckets for the package artifacts across cloud regions.
• Load balancing to minimize the access latency for the clients, using methods like IP geolocation to determine the closest package server.
• Dynamic scaling of the number of instances of package servers during times of rolling out larger updates.
• Anticipation of the expected load patterns before minor and major releases.

Prior art and references

• Packages in fuchsia.dev
• Eager package updates RFC
• Subpackages RFC
• Early boot packages RFC
• Package sets RFC
