Run tests on a device

The ffx test run command can run tests on a Fuchsia device and collect test results and diagnostic information.

Concepts

The ffx test run command executes tests that are integrated with the Fuchsia test runner framework, which allows test cases to be defined and implemented in a Fuchsia component.

Running a test component on a Fuchsia device requires the following steps:

1. Compile the code, component, and package definitions into a Fuchsia package.
2. Make the package available to the target device.
3. Run the test component on the target device.

The ffx test commands only handle step 3. Steps 1 and 2 inherently require knowledge of the build system andffx test is explicitly designed to be agnostic to build systems.

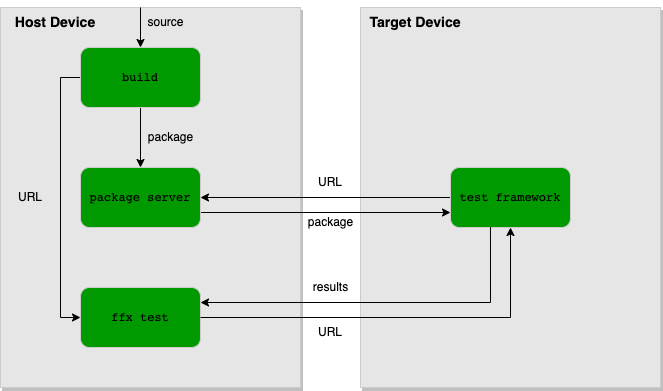

Figure 1. A flow diagram showing how ffx test fits in among other tools used in compiling and running tests.

The ffx test commands are intended to serve as a lower-level tool that gets invoked by other tools, which often run tests that are specific to a build system or a development environment. The workflows documented on this page are mainly for developers who are working on such high-level tools. As a test author, if you are looking for instructions on how to run tests in a specific project, try examining the documentation in the project repository. And for running tests within the Fuchsia source checkout (fuchsia.git), see the fx test documentation.

However, in rare cases you may need to invoke ffx test directly to use fine-grained options that are not available in high-level tools. Additionally, a project may need to support other types of tests that ffx test does not support, such as host tests. High-level test scripts either directly handle these concerns or delegate the responsibilities to other tools. For example, fx test is used for development in fuchsia.git and bazel test in the Fuchsia SDK.

Run a test component

To run a test component on the target device, run the following command:

ffx test run TEST_COMPONENT_URL

Replace TEST_COMPONENT_URL with the target test component URL.

The example command below runs tests in the example.cm component on the target device:

$ ffx test run fuchsia-pkg://fuchsia.com/example#example.cm

Run specific test cases using filters

To selectively run test cases in a test component, run the following command:

ffx test run TEST_COMPONENT_URL --test-filter FILTERS

Replace the following:

• TEST_COMPONENT_URL – The target test component URL.
• FILTERS – Patterns to be used to match test cases.

The filters provided in the --test-filter option will match based on glob patterns. Only the test cases that match at least one pattern will be run. For example, given that a suite has the test cases Foo.Test1, Foo.Test2, Bar.Test1, and Bar.Test2, the command below only executes Foo.Test1 and Foo.Test2:

$ ffx test run fuchsia-pkg://fuchsia.com/example#example.cm --test-filter Foo.*

Negative filters may be specified by prepending -. When negative filters are specified, test cases matching the negative filter are excluded. For example, with the same suite as above, the command below only executes Bar.Test1 and Bar.Test2:

$ ffx test run fuchsia-pkg://fuchsia.com/example#example.cm --test-filter -Foo.*

The --test-filter option can be specified multiple times. The behavior of multiple filters is as follows:

• When no filters are specified, all test cases are run.
• When only positive filters are specified, test cases that match at least one filter are run.
• When only negative filters are specified, test cases that match none of the filters are run.
• When both positive and negative filters are specified, test cases that match at least one positive filter but do not match any negative filters are run.

With the same suite as above, the example command below only executes Foo.Test2:

$ ffx test run fuchsia-pkg://fuchsia.com/example#example.cm --test-filter Foo.* --test-filter -*.Test1

Run tests with arguments

To pass arguments to the tests in a test component, run the following command:

ffx test run TEST_COMPONENT_URL -- ARGS

Replace the following:

• TEST_COMPONENT_URL – The target test component URL.
• ARGS – Arguments to be passed to the tests.

The example command below passes the arguments hello and 1234 directly to the tests:

$ ffx test run fuchsia-pkg://fuchsia.com/example#example.cm -- hello 1234

Run tests and store structured results

ffx test run supports printing and storing test results in a machine readable format, which is suitable for consumption by other tools (see test output format for the details of the schema).

To store structured test results after running tests, run the following command:

ffx test run TEST_COMPONENT_URL --output-directory DIR

Replace the following:

• TEST_COMPONENT_URL – The target test component URL.
• DIR – The directory to store structured test results.

The example command below stores the output in the /tmp/ffx-out directory:

$ ffx test run fuchsia-pkg://fuchsia.com/example#example.cm --output-directory /tmp/ffx-out

Appendices

Return codes

ffx test run returns zero when a test runs successfully, and non-zero in case of failure. ffx test run supports a number of special error codes:

Interrupt signal

When passed SIGINT, which is typically done by pressing Ctrl+C in the terminal, ffx test run will attempt to gracefully stop in-progress tests and store the results.

Experimental features

ffx test run supports a number of experimental features. These features are subject to breaking changes or removal. Using an experimental feature requires opting in by setting the corresponding ffx config fields to true. See ffx test run --help for information on available experimental features and how to opt in.
