Analyze traces with PerfettoSQL and fx perf-analyze

After recording a Fuchsia trace (.fxt), you can query and analyze the underlying trace data programmatically using SQL through Perfetto's Trace Processor engine. While the Perfetto UI provides interactive timeline visualization, SQL analysis enables automated anomaly detection, quantitative performance regression analysis, and batch metric aggregation.

For an introduction to the core PerfettoSQL dialect, query syntax, and standard tables, see the official PerfettoSQL getting started and Perfetto SQL tables documentation.

This guide explains how to analyze Fuchsia traces using: * Choosing the right trace analysis tool * High-level performance triage with fx perf-analyze * Fuchsia trace schema and data model * Common Fuchsia PerfettoSQL recipes * Running queries across tools and environments

Choosing the right trace analysis tool

Fuchsia developers have three main ways to query and inspect trace data. Choose the tool that best fits your workflow:

  • Perfetto Web UI

    Visual exploration & ad-hoc inspection: Interactively browse timeline tracks, inspect slice details, run ad-hoc SQL queries in the browser, and share permalinks.

  • fx perf-analyze (Recommended for Fuchsia)

    Automated triage & scripted analysis: Run curated diagnostic plugins (cpu, binder), generate structured output (markdown, json, text), and run batch SQL queries directly from the host terminal. This is the preferred interface for agentic interactions and automated workflows.

  • trace_processor_shell

    Standalone & non-Fuchsia environments: The underlying engine behind PerfettoSQL. Use when developing outside a Fuchsia source checkout (where fx is unavailable), building custom Python/C++ automation against upstream Perfetto SDKs, or using the interactive terminal REPL.

High-level performance triage with fx perf-analyze

For common triage workflows, you do not need to write raw SQL queries from scratch. Fuchsia provides fx perf-analyze, a host-side CLI tool that encapsulates standard performance heuristics into automated analysis plugins and provides a flexible query runner.

fx perf-analyze supports local .fxt files as well as Perfetto UI permalink URLs (automatically downloading and caching the trace).

Automated triage plugins (fx perf-analyze analyze)

The analyze subcommand executes specialized diagnostic plugins:

fx perf-analyze analyze --trace <TRACE_FILE_OR_URL> --plugin <PLUGIN_NAME>

You can choose formatted Markdown table output (--format markdown), structured JSON (--format json), or tab-separated text (--format text).

1. CPU utilization and idle power triage (cpu plugin)

The cpu plugin runs a multi-dimensional diagnostic suite to audit system activity, excessive wakeups, and power blockers:

  • Restless Sleepers (Wakeup Counts): Identifies threads with high context switch/wakeup frequencies and short runtimes, pinpointing timer thrashing or uncoalesced polling loops that prevent CPU cores from entering deep sleep states.

  • Per-Core Utilization & Processing Rate: Evaluates core duty cycles (% active non-idle time) weighted by DVFS frequency scaling counters (Processing Rate:CPU:N).

  • Top CPU Consumers (Usual Suspects): Ranks threads by total accumulated CPU runtime.

  • Async Executor Overhead: Measures time spent in Fuchsia async futures polling (executor / fuchsia_async).

  • Binder IPC Breakdown: Quantifies Starnix/Android Binder IPC transaction volume and latencies.

  • Suspend and Wake Lease Tracking: Audits System Activity Governor (SAG) suspend attempts and active wake leases preventing system suspend.

fx perf-analyze --format markdown analyze \
  --trace trace.fxt \
  --plugin cpu \
  --limit 10

2. Starnix Binder & IPC bottleneck analysis (binder plugin)

The binder plugin audits IPC transaction delays and scheduling bottlenecks:

  • Missed Wakeups: Detects scheduling delays where a thread was runnable (R state) but waited excessively long before being scheduled onto a CPU.

  • Binder Transaction Delays: Measures end-to-end flow latencies across client dispatch, queue wait, and server processing.

fx perf-analyze --format markdown analyze \
  --trace trace.fxt \
  --plugin binder \
  --threshold-ms 10.0

Running custom and batch queries with fx perf-analyze query

To run ad-hoc SQL queries from the command line:

fx perf-analyze --format markdown query \
  --trace trace.fxt \
  --sql "SELECT count(*) AS total_slices FROM slice"

To execute multiple queries in a single Trace Processor ingestion session (avoiding repeated trace parsing overhead), pass a JSON query batch using @filepath:

[
  {
    "name": "total_slices",
    "sql": "SELECT count(*) AS count FROM slice;"
  },
  {
    "name": "unique_threads",
    "sql": "SELECT count(DISTINCT utid) AS count FROM thread;"
  }
]

fx perf-analyze --format json query \
  --trace trace.fxt \
  --batch @queries.json

Fuchsia trace schema and data model

When Perfetto Trace Processor ingests a Fuchsia trace (.fxt), it parses the binary records into relational SQLite tables. For complete schema references, see Perfetto SQL tables.

Key concepts and ID relationships specific to Fuchsia traces include:

  • Units: All timestamps (ts) and duration values (dur) are stored as integer nanoseconds. Convert nanoseconds to milliseconds by dividing by 1e6 (for example, dur / 1e6 AS dur_ms).

  • Processes and Threads:

    • process.name: Fuchsia user space processes are identified by their component URL/manifest name (for example, archivist.cm, netstack.cm, scenic.cm) or kernel process name (kernel).

    • process.pid and thread.tid: Match Fuchsia Kernel Object IDs (KOIDs).

    • upid and utid: Unique internal IDs generated by Trace Processor to distinguish processes and threads across PID/TID recycling.

  • Tracks and Slices (Join Hierarchy):

    • Slices are associated with timeline tracks, not threads directly.

    • To associate a slice with its thread and process, join via thread_track:

    FROM slice s
JOIN thread_track tt ON s.track_id = tt.id
JOIN thread t USING (utid)
JOIN process p USING (upid)

  • Flows (Cross-Process / Async Causality):

    • The flow table maps causal relationships between asynchronous operations, such as client-to-server FIDL calls.

    • flow.slice_out identifies the originating client slice, and flow.slice_in identifies the server handling slice.

  • Kernel Counters & Power Categories:

    • Traces captured with specialized categories emit counters under the kernel process (such as Processing Rate:CPU:N for CPU frequency scaling under kernel:power).

    • For details on how CPU frequency and bandwidth demand counters are captured and scaled, see Recording CPU frequency in a trace.

Common Fuchsia PerfettoSQL recipes

1. Measure FIDL IPC latency across processes

Fuchsia components emit flow events to trace FIDL calls across process boundaries. This query measures the transfer latency from client request dispatch (slice_out) to server execution start (slice_in), along with server execution time:

SELECT
  client_proc.name AS client_process,
  server_proc.name AS server_process,
  slice_out.name AS client_operation,
  slice_in.name AS server_operation,
  ROUND((slice_in.ts - slice_out.ts) / 1e6, 3) AS transfer_latency_ms,
  ROUND(slice_in.dur / 1e6, 3) AS server_dur_ms
FROM flow
JOIN slice AS slice_out ON flow.slice_out = slice_out.id
JOIN slice AS slice_in ON flow.slice_in = slice_in.id
JOIN thread_track AS client_tt ON slice_out.track_id = client_tt.id
JOIN thread AS client_th ON client_tt.utid = client_th.utid
JOIN process AS client_proc ON client_th.upid = client_proc.upid
JOIN thread_track AS server_tt ON slice_in.track_id = server_tt.id
JOIN thread AS server_th ON server_tt.utid = server_th.utid
JOIN process AS server_proc ON server_th.upid = server_proc.upid
ORDER BY transfer_latency_ms DESC
LIMIT 20;

2. Top time-consuming operations in a component

To find which operations consume the most aggregate time within a specific component (e.g. netstack.cm):

SELECT
  slice.name AS operation,
  COUNT(*) AS count,
  ROUND(SUM(slice.dur) / 1e6, 3) AS total_dur_ms,
  ROUND(AVG(slice.dur) / 1e6, 3) AS avg_dur_ms,
  ROUND(MAX(slice.dur) / 1e6, 3) AS max_dur_ms
FROM slice
JOIN thread_track ON slice.track_id = thread_track.id
JOIN thread USING (utid)
JOIN process USING (upid)
WHERE process.name LIKE '%netstack%' AND slice.dur > 0
GROUP BY slice.name
ORDER BY total_dur_ms DESC
LIMIT 20;

3. Identify restless sleepers (thread wakeups and churn)

Threads with high context switch / wakeup counts but very low average running durations (e.g. < 0.1 ms) indicate polling churn or timer thrashing:

SELECT
  t.name AS thread_name,
  t.tid AS tid,
  p.name AS process_name,
  COUNT(*) AS wakeup_count,
  ROUND(AVG(ts.dur) / 1e6, 3) AS avg_duration_ms,
  ROUND(SUM(ts.dur) / 1e6, 3) AS total_duration_ms
FROM thread_state ts
JOIN thread t USING (utid)
LEFT JOIN process p USING (upid)
WHERE ts.state = 'Running'
GROUP BY utid
ORDER BY wakeup_count DESC
LIMIT 20;

4. CPU execution time per thread (sched table)

When a trace is captured with kernel:sched, the sched table records CPU quantum durations:

SELECT
  process.name AS process_name,
  thread.name AS thread_name,
  COUNT(*) AS context_switches,
  ROUND(SUM(sched.dur) / 1e6, 3) AS total_cpu_time_ms,
  ROUND(AVG(sched.dur) / 1e3, 3) AS avg_quantum_us
FROM sched
JOIN thread USING (utid)
JOIN process USING (upid)
WHERE sched.dur > 0
GROUP BY process.name, thread.name
ORDER BY total_cpu_time_ms DESC
LIMIT 20;

5. Inspect trace event arguments

To query key-value arguments attached to trace slices:

SELECT
  slice.name AS slice_name,
  args.key AS arg_name,
  COALESCE(
    args.string_value,
    CAST(args.int_value AS TEXT),
    CAST(args.real_value AS TEXT)
  ) AS arg_value
FROM slice
JOIN args ON slice.arg_set_id = args.arg_set_id
WHERE slice.name = 'ChannelMessage'
LIMIT 50;

6. Time interval overlap matching

When querying slices or events that overlap with a specific time window [start_ts, end_ts], use overlap logic rather than strict containment to capture events starting before or ending after the window:

SELECT
  slice.name,
  slice.ts,
  slice.dur
FROM slice
WHERE (slice.ts + slice.dur) >= <START_TS>
  AND slice.ts <= <END_TS>;

Running queries across tools and environments

1. Perfetto Web UI Query tab

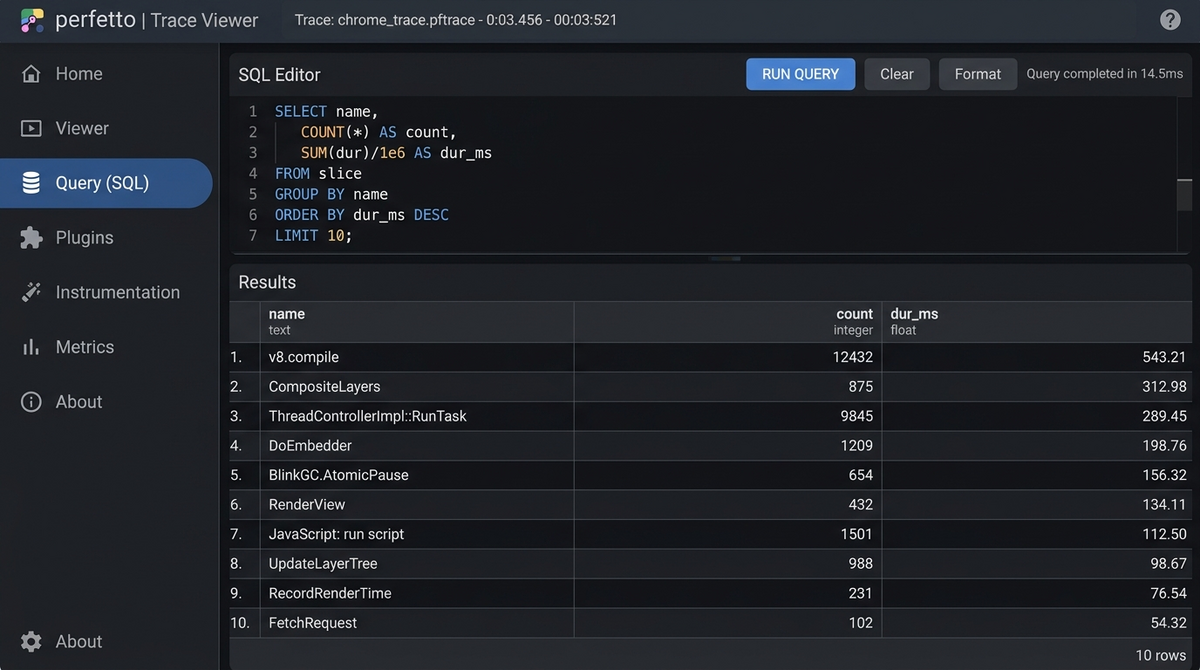

You can run SQL queries interactively inside the Perfetto UI: 1. Open your .fxt file in https://ui.perfetto.dev. 2. Click Query (SQL) in the left sidebar. 3. Enter your query and press Ctrl+Enter (or Cmd+Enter on macOS).

Perfetto SQL Query interface

Inspecting large traces with HTTP RPC mode

If a trace file is too large to load smoothly in web browser memory, you can run Trace Processor locally as an HTTP RPC daemon:

./prebuilt/third_party/perfetto/trace_processor_shell/linux-x64/trace_processor_shell \
  --httpd --http-port 9001 trace.fxt

Once running, navigate to https://ui.perfetto.dev and select Open with HTTP RPC in the navigation bar.

2. Standalone Trace Processor Shell (trace_processor_shell)

trace_processor_shell is the standalone binary engine developed upstream by Perfetto that powers both fx perf-analyze and Perfetto's analytical tools.

Fuchsia source checkouts include prebuilt binaries under: posix-terminal prebuilt/third_party/perfetto/trace_processor_shell/<PLATFORM>/trace_processor_shell Where <PLATFORM> is linux-x64, linux-arm64.

If you are working outside a Fuchsia checkout, you can download the binary directly from Perfetto: posix-terminal curl -LO https://get.perfetto.dev/trace_processor chmod +x ./trace_processor

  • Interactive REPL:

    ./prebuilt/third_party/perfetto/trace_processor_shell/linux-x64/trace_processor_shell \
  trace.fxt

  • Run an inline query with fx perf-analyze:

    fx perf-analyze query \
  --trace trace.fxt \
  --sql "SELECT count(*) AS total_slices FROM slice;"

  • Run a batch query file with fx perf-analyze:

    fx perf-analyze query \
  --trace trace.fxt \
  --batch @queries.json
